GPU Memory Consistency Model

Disclaimer: The content of this blog reflects my personal experiences and opinions while learning GPU programming in my own time. All information presented is publicly available and does not represent the views or positions of NVIDIA Corporation or any of its affiliates.

Disclaimer2: The content of this blog may be incorrect. It just represents my own understanding of the memory consistency model. And I am being intentionally wrong sometimes (on TMEM in particular) for better clarity and simplicity. The ptx doc is the ground truth.

0. Introduction

I wish I would never think about the memory model. And for a while this does seem to be the case. You load your data from GMEM to SMEM and then you do a __syncthreads(). Then the data is visible to all threads in the CTA. Life is good.

However, as the GPU architecture becomes more complex, more co-processors are introduced (e.g. TMA/Tensor Cores), and more sophisticated kernel programming techniques are introduced (e.g. warp specialization, kernel fusion). Suddenly, you have to think about the memory model in order to just write a functionally correct kernel.

Even though the ptx doc describes the memory consistency model in a formal way, the lack of examples makes it hard to understand and use in practice. In this blog, I attempt to provide concrete examples on how to do synchronization that adheres to the memory consistency model on many common use cases in kernel programming. All of the examples are based on ptx doc 9.0 and things may change in future versions.

1. Background

Unfortunately we need to define some terminologies first. Please bear with me as I guarantee you they are actually useful.

1.1. What is Memory Consistency Model?

The memory consistency model roughly describes when the memory operation performed by one thread is visible to other threads.

This is important because many times we want to establish a producer-consumer relationship in a kernel, where the producer threads produces some data, and the consumer threads (could be a different set of threads) consume the data. Then how to ensure the producer’s output is visible to the consumer is a memory consistency problem.

1.2. Execution Order Does Not Guarantee Memory Order

Instruction execution of two threads can be ordered, meaning with some synchronization mechanism (e.g. mbarrier.arrive+try_wait) we can ensure thread B will executes ld.shared after thread A issues st.shared.

thread A:
    st.shared addr, val
    mbarrier.arrive.relaxed
thread B:
    mbarrier.try_wait.relaxed
    ld.shared reg, addr

But this execution order does not guarantee any memory order at all! (I intentionally use the relaxed semantic here just to order execution not memory). Thread B may not see the newly written value in addr by ld.shared. A totally valid hardware implementation of this would be while the stored value val is still in some LSU (load store unit), the load from thread B will read out the old value from memory. In order for this producer-consumer relationship to be correct, we need to use proper fences to guarantee the memory order on top of the execution order, i.e. ensure thread A’s memory operation is visible to thread B.

1.3. Scope

Since memory model cares about the memory order between a set of threads, as you can imagine, the scope where these threads are all belong to may be different. Sometimes you just want threads within a CTA to be synchronized, sometimes you want threads within a GPU to be synchronized. We call this the scope and this often manifests as a .xxx suffix in the ptx instruction.

.cta means we care about the memory order between threads within a CTA, .cluster means we care about the memory order between threads within a cluster, .gpu means we care about the memory order between threads within a GPU. Note that there isn’t a .grid scope. There is also a .sys scope that includes threads on other GPUs and the CPU, but we don’t talk about it in this blog.

The larger the scope, the more costly the synchronization is.

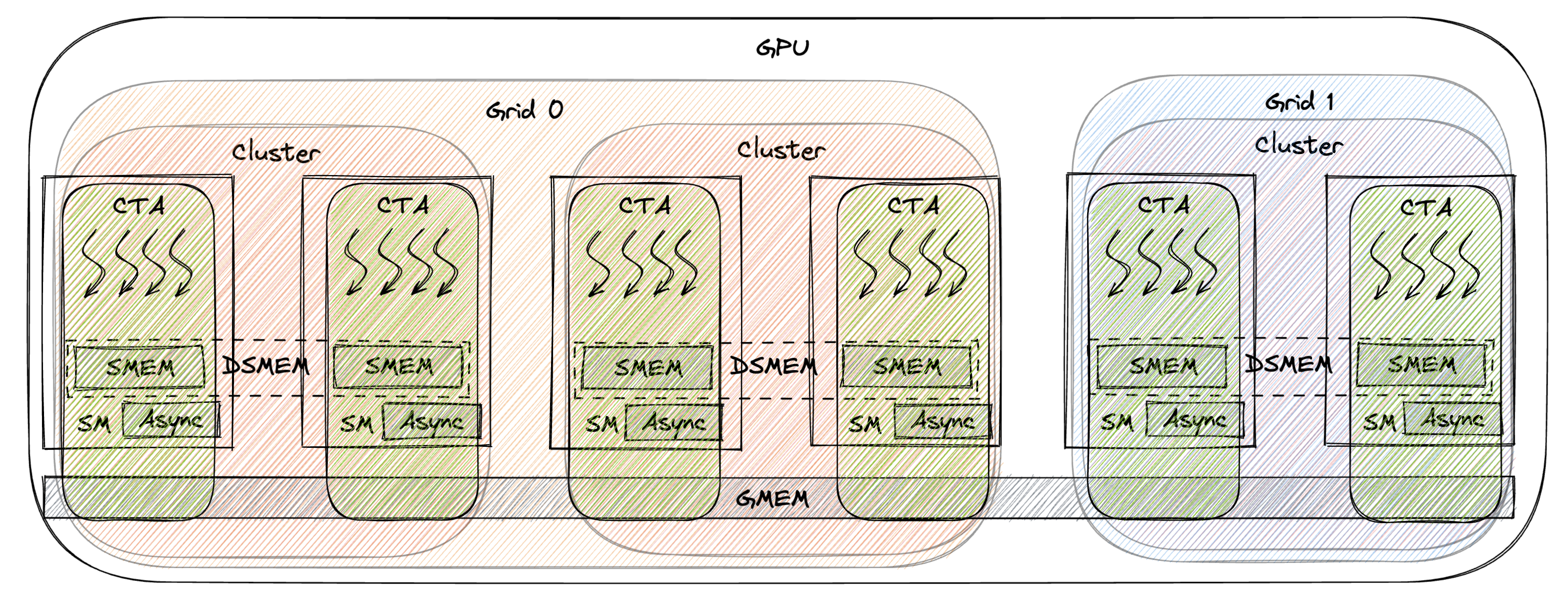

The figure below also illustrates this hierarchy. The curly boxes represent different scopes.

1.4. State Space

An orthogonal thing to scope is the state space of the memory operation, meaning we care about the memory operation on which storage (SMEM/GMEM/DSMEM/etc.) idiom. The figure above also shows the state space hierarchy. The square boxes represent different state spaces. In ptx, this often manifests as a .xxx::yyy suffix in the ptx instruction.

.shared::cta means we care about the memory operation order on SMEM (shared memory), shared::cluster means we care about the memory operation order on DSMEM (distributed shared memory), .global means we care about the memory operation order on GMEM (global memory).

The larger/farther away the state space, the more costly the synchronization is.

Confusingly, state space in CUDA normally means something else. It just means in what storage idiom this object resides in. For instance, ld/st could load/store from/to SMEM/DSMEM/GMEM. They are different state spaces of the ld/st instruction. mbarrier state space means where the mbarrier object is located (whether that’s a CTA local mbarrier or a mbarrier in a different CTA but in the same cluster). But in memory model land, state space means at which storage idiom we want to order the memory operations. I don’t want to mix up the two concepts. In this blog, I will use state space to mean at which storage idiom we want to order the memory operations. I will just use the word location to refer to where an object resides in.

1.5. Generic vs Async Proxy

So far the thread we’ve been talking about is thread running on the CUDA core. Modern Nvidia GPUs introduces many asynchronous co-processors (e.g. TMA/Tensor Cores) that can be viewed as an asynchronous thread other than the normal threads running on the CUDA core. We call threads running on the CUDA cores the generic proxy and threads running on the asynchronous co-processors (TMA/Tensor Cores, etc.) the async proxy.

The memory order between the generic proxy and the async proxy needs to be specially handled. In other words, memory order operations that guarantee memory order within the generic proxy doesn’t not by default extend to the async proxy.

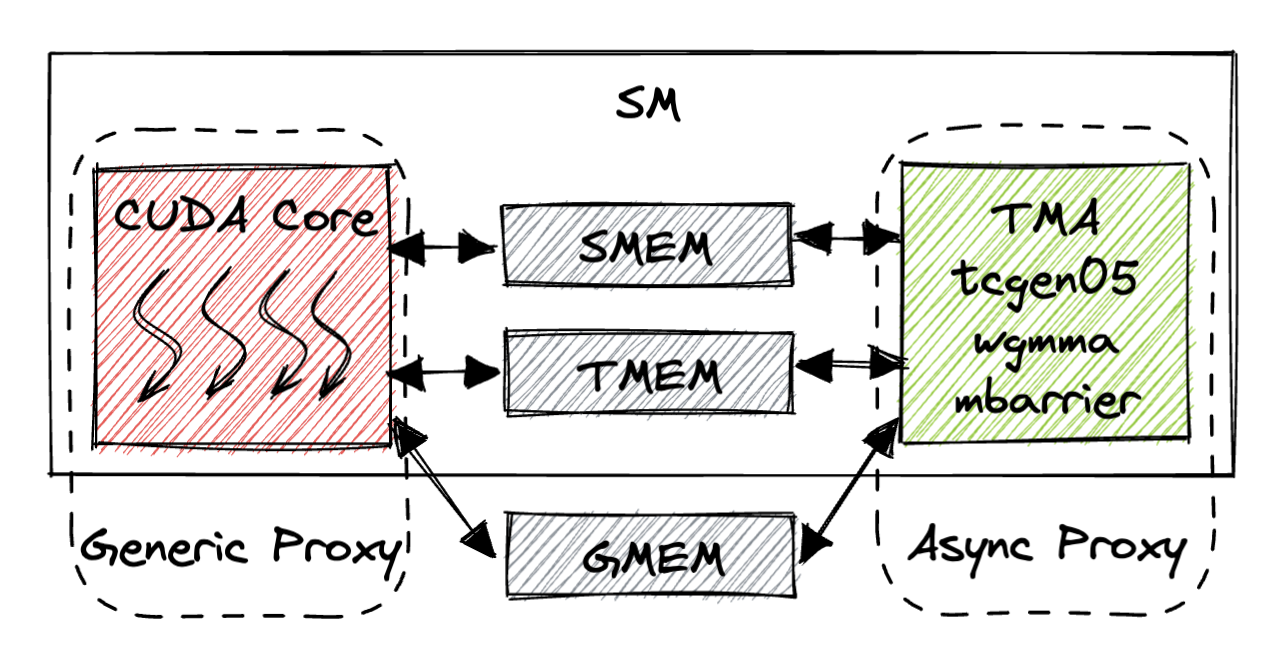

The figure below shows the generic proxy and async proxy on an SM.

The async proxy includes the TMA unit, the Hopper (wgmma)/Blackwell (tcgen05) Tensor Cores, the mbarrier unit. The async proxy primarily communicates with the generic proxy through different storage idiom (SMEM/TMEM/GMEM). Unfortunately, each unit has a different way to synchronize the memory order. So in Sec. 2 we will cover all the common patterns.

1.6. Synchronization Mechanisms

There are several ways to enforce execution order and memory order on Nvidia GPUs. The table below lists the most common ones which are the ones we will cover in this blog.

1.7. Memory Ordering Semantics

Often we append a synchronization instruction (e.g. mbarrier) with a memory ordering semantic to enforce the memory order on top of the execution order. The few notable ones are:

• release: The release pattern makes prior memory operations (before release) from the current thread visible to other threads.
• acquire: The acquire pattern makes prior (before acquire) memory operations from other threads visible to the current thread.
• acq_rel: The acq_rel pattern makes prior (before acq_rel) memory operations from other threads visible to the current thread and makes the current thread’s prior (before acq_rel) memory operations visible to other threads.
• relaxed: No memory order is enforced.

Note that the memory ordering is kinda meaningless by itself without a proper execution order synchronization. Because then it’s hard to define the term prior. It’s totally possible thread B executes acquire way earlier than thread A executes release (in terms of time), there is no way thread A’s value is visible to thread B. It has to be accompanied by a proper execution order synchronization.

2. Common Memory Ordering Patterns

In this section, we will enumerate all the common memory ordering patterns occurred in kernel programming. We focus on the producer-consumer pattern as it’s the most common technique and the usual place where the memory model is needed. Based on the proxy of the producer and consumer threads, we can categorize the memory ordering patterns into 4 categories:

In this blog for the Tensor Core part we focus on the Blackwell tensor core (tcgen05) but Hopper Tensor Core should be spiritually the same.

2.1. Generic Proxy -> Generic Proxy

Traditional CUDA SIMT programming (no TMA, no Tensor Core) would just involve threads within the generic proxy synchronizing with each other in a producer-consumer relationship. The table below lists some of the ways to enforce memory order between threads within the generic proxy.

2.1.1. Intra-CTA Producer-Consumer

This means the producer and consumer threads are within the same CTA. Irrespective of the synchronization mechanism, the equivalent SASS instruction that guarantees memory order is MEMBAR.CTA. It’s either built implicitly into the instruction or manually inserted by the compiler when lowering from ptx to SASS.

Two use cases come into mind:

1. Producer threads read from GMEM and write to SMEM. Then consumer threads (can be the same set of threads) read from SMEM and do some computation.
2. In Algorithm 1 of Flash Attention v1, The partial result $O_i$ of the previous iteration is written to GMEM by producer threads and then reload back into SMEM for the next iteration by consumer threads.

2.1.1.1. __syncthreads() and Named Barriers

The most popular way is to use __syncthreads() to guarantee memory order. __syncthreads() implicitly carry the acq-rel semantic meaning the threads after __syncthreads() can see the memory operations’ effects (on both SMEM and GMEM) before __syncthreads(). Needless to say, __syncthreads() guarantees execution order too, meaning the instructions after __syncthreads() will be executed after all the threads in the CTA have arrived at the __syncthreads() point. Combined, this ensures when the consumer threads get unblocked by __syncthreads(), the producer threads’ finish the memory operations before __syncthreads() and the effects are visible.

Producer threads:
    ld.global reg, gaddr
    st.shared addr, reg
    __syncthreads()
Consumer threads:
    __syncthreads()
    ld.shared reg, addr
    ...

Named Barriers has the exact same effect as __syncthreads() but can be applied to a subset of threads within the CTA while __syncthreads() is applied to all threads in the CTA.

2.1.1.2. mbarrier.arrive+try_wait

Alternatively, we can use mbarrier to guarantee execution order and memory order. The default semantic of mbarrier.arrive is release and the default semantic of mbarrier.try_wait is acquire. This means when the consumer threads finish waiting on the mbarrier, the producer threads finish executing their memory operations before mbarrier.arrive. And the producer threads’ memory operations’ effects are visible to the consumer threads. Similar to __syncthreads(), the state space is also SMEM/DSMEM/GMEM.

# initialize mbarrier arrive count to num producer threads
Producer threads:
    ld.global reg, gaddr
    st.shared addr, reg
    mbarrier.arrive.release.cta
Consumer threads:
    mbarrier.try_wait.acquire.cta
    ld.shared reg, addr
    ...

2.1.1.3. mbarrier.relaxed.arrive+try_wait + fence.cta

If you don’t want to use the acquire/release semantic built into the mbarrier but still want to guarantee memory order, you can use explicit fences + execution order synchronization (achieved by __syncthreads() or mbarrier.relaxed) to achieve the same effect.

# initialize mbarrier arrive count to num producer threads
Producer threads:
    ld.global reg, gaddr
    st.shared addr, reg
    fence.release.cta
    mbarrier.relaxed.arrive
Consumer threads:
    mbarrier.relaxed.try_wait
    fence.acquire.cta
    ld.shared reg, addr
    ...

Here we use relaxed version of the mbarrier to only guarantee execution order. But we insert explicit memory fences to guarantee memory order. When the consumer threads get unblocked by mbarrier.relaxed.try_wait, this means all the producer threads have finished executing fence.release.cta. Then after the consumer threads execute fence.acquire.cta, the memory operation by the producer threads are visible to the consumer threads.

Additionally, fence.cta guarantees memory order on SMEM/DSMEM/GMEM similar to __syncthreads() and mbarrier with acq_rel semantic. __threadfence_block() is equivalent to fence.cta and both emit MEMBAR.CTA in SASS.

The execution order here is also necessary to make this producer-consumer relationship correct. Imagine not having the mbarrier synchronization, how would the consumer threads know when the producer threads have finished executing fence.release.cta? There is no way to know.

2.1.2. Intra-Cluster Producer-Consumer

This means the producer and consumer threads are within the same cluster but not necessarily the same CTA.

The most notable use case is cluster-level split-k GEMM, where each CTA in the cluster generates a partial result and write to DSMEM (distributed shared memory), and then the cluster collectively reduces the partial results from local SMEM into the final result. So the producer CTAs write to DSMEM and the consumer CTAs (could be the same set of CTAs) read from local SMEM for reduction. This is also referred to as push.

Most implementations would emit fence.cluster-equivalent fences (which translates to MEMBAR.GPU in SASS). As you can imagine, this is slightly costly as we don’t need a GPU scope fence. So in Sec. 2.1.2.5 and Sec. 2.1.2.6 we will cover a more efficient way to do cluster-level reduction without emitting MEMBAR.GPU by leveraging st.async.

2.1.2.1. barrier.cluster.arrive+wait

barrier.cluster.arrive+wait is the __syncthreads() equivalent for cluster-level execution+memory order synchronization.

Producer threads:
    ld.global reg, gaddr
    st.shared::cluster addr, reg
    barrier.cluster.arrive
Consumer threads:
    barrier.cluster.wait
    ld.shared::cta reg, addr
    ...

Here we have the producer threads write to DSMEM (via st.shared::cluster) and the consumer threads read from local SMEM (via ld.shared::cta). And we will continue using this pattern in this entire sub-section.

The default semantic of barrier.cluster.arrive is release and the default semantic of barrier.cluster.wait is acquire. This means barrier.cluster.arrive_wait guarantees execution order and memory order between the producer and consumer threads. The ld.shared::cta instruction in the consumer threads can see the memory operations’ effects (on both DSMEM and GMEM) of the producer threads (since the state space of barrier.cluster is DSMEM/GMEM).

Putting the code in goldbolt, we can see indeed this pattern emits MEMBAR.GPU in SASS.

2.1.2.2. mbarrier.cluster.arrive+try_wait

Similarly, mbarrier can also be used to guarantee execution and memory order between the producer and consumer threads within a cluster and the state space is also SMEM/DSMEM/GMEM.

Producer threads:
    ld.global reg, gaddr
    st.shared::cluster addr, reg
    mbarrier.cluster.arrive.release.shared::cluster
Consumer threads:
    mbarrier.cluster.try_wait.acquire.shared::cta
    ld.shared::cta reg, addr
    ...

Since the producer and consumer threads are within the same cluster, the scope is .cluster instead of the default .cta. The producer writes to mbarrier in other CTAs in the cluster, so the location of the mbarrier object is .shared::cluster in mbarrier.cluster.arrive. The consumer only waits on its local mbarrier object, so the location of the mbarrier object is .shared::cta in mbarrier.cluster.try_wait. And obviously acquire/release semantic guarantees the data visibility.

If you inspect the SASS code, you can see in fact this pattern emits MEMBAR.GPU, which suggests in practice this pattern can guarantee memory order on GMEM as well. But since the ptx doc doesn’t explicitly state this, this seems to be an implementation dependent behavior and are not guaranteed for future generations of GPUs.

2.1.2.3. barrier.relaxed.cluster.arrive+wait + fence.cluster

Similarly to the intra-CTA case, we can also use the relaxed version of barrier.cluster with explicit fences to guarantee memory order. Since the scope is .cluster, the fences are fence.cluster. And the state space is SMEM/DSMEM/GMEM.

Producer threads:
    ld.global reg, gaddr
    st.shared::cluster addr, reg
    fence.release.cluster
    barrier.cluster.arrive.relaxed
Consumer threads:
    barrier.cluster.wait
    ld.shared::cluster reg, addr
    ...

The mbarrier.relaxed.cluster guarantees execution order and the fence.cluster guarantees memory order. One small note is that the default semantic of barrier.cluster.wait is acquire so we don’t need an extra fence.acquire.cluster after it.

Inspecting the SASS code, we get MEMBAR.GPU in SASS again. Because on current architecture, fence.cluster lowers to MEMBAR.GPU.

2.1.2.4. mbarrier.cluster.relaxed.arrive+try_wait + fence.cluster

Same deal as Sec. 2.1.2.3, but with mbarrier.relaxed for execution order synchronization and explicit fence.cluster for memory order.

Producer threads:
    ld.global reg, gaddr
    st.shared::cluster addr, reg
    fence.release.cluster
    mbarrier.cluster.arrive.relaxed.shared::cluster
Consumer threads:
    mbarrier.cluster.try_wait.relaxed.shared::cta
    fence.acquire.cluster
    ld.shared::cta reg, addr
    ...

The state space is still SMEM/DSMEM/GMEM. The SASS code is also MEMBAR.GPU.

2.1.2.5. st.async + mbarrier.acquire.try_wait

Is there a way to avoid the costly fence.cluster/MEMBAR.GPU? Yes! st.async is exactly designed for this purpose. Recall that the state space of fence.cluster is DSMEM and GMEM. But for our use case here, we only want to apply memory order on DSMEM. The mbarrier memory semantic embedded in st.async only applies to DSMEM not GMEM. Note that, shared::cluster just means the location of the mbarrier object this st.async arrives on is in the DSMEM of the cluster, it doesn’t refelect the memory model state space of the st.async.

Producer threads:
    ld.global reg, gaddr
    st.async.cluster.shared::cluster addr, reg
Consumer threads:
    mbarrier.cluster.try_wait.acquire.shared::cta
    ld.shared::cta reg, addr
    ...

According to the ptx doc, st.async inherently has release semantic at the cluster scope and DSMEM state space. And it also arrives on a mbarrier object during completion. So it handles both execution order and memory order for us on the producer side. And on the consumer side, we simply do a acquire wait on the barrier to ensure execution order and memory order.

Inspecting the SASS code, we no longer emit MEMBAR.GPU which is good for performance. To reiterate, the key to avoid MEMBAR.GPU is the memory model state space is DSMEM and doesn’t include GMEM.

2.1.2.6. st.async + mbarrier.relaxed.try_wait + fence.sync_restrict

Alternatively, if you don’t want to use the acquire in mbarrier.try_wait, you can use the relaxed version of mbarrier and explicit fences to guarantee memory order.

Producer threads:
    ld.global reg, gaddr
    st.async.cluster.shared::cluster addr, reg
Consumer threads:
    mbarrier.cluster.try_wait.relaxed.shared::cta
    fence.acquire.sync_restrict::shared::cluster.cluster
    ld.shared::cta reg, addr
    ...

Here sync_restrict in fence specifies the state space of the fence to be DSMEM (not including GMEM). And it obviously has acquire semantic and cluster scope. So equivalently, this pattern guarantees execution order and memory order on DSMEM and avoids emitting MEMBAR.GPU.

2.1.2.7. Bonus: pull variant

So far we’ve only talked about the push variant of cluster-level reduction. You can also implement this with the pull variant, meaning the producer CTAs write partial results to local SMEM and the consumer CTAs read from remote SMEM for reduction.

We skip all the intermediate implementations and only list the SOL (speed of light) implementation here that avoids emitting MEMBAR.GPU.

Producer threads:
    ld.global reg, gaddr
    st.shared::cta addr, reg
    fence.release.sync_restrict::shared::cta.cluster
    mbarrier.cluster.arrive.relaxed.shared::cluster
Consumer threads:
    mbarrier.cluster.try_wait.relaxed.shared::cta
    fence.acquire.sync_restrict::shared::cluster.cluster
    ld.shared::cluster reg, addr
    ...

Because we want the memory model state space to be DSMEM (not including GMEM), we need to use relaxed version of mbarrier such that it only guarantees execution order. Note that the release and acquire fence has sync_restrict semantic which specifies the state space of the memory order to be DSMEM (not including GMEM).

2.1.3. Intra-GPU Producer-Consumer

This means the producer and consumer threads are within the same GPU but not necessarily the same grid.

The common pattern here is producer-consumer subgrid in a megakernel. The producer subgrid executes a layer of the LLM model and produces intermediate activations in GMEM. Then the consumer subgrid is the subsequent layer that consumes the intermediate activations in GMEM. And we put both layer in a single megakernel. ThunderKitten and Mirage Persistent Kernel are two examples of megakernel.

Now the scope we are synchronizing the producer and consumer threads is gpu and the state space is GMEM. We can continue using the release and acquire semantics to guarantee memory order. But we can’t use mbarrier or __syncthreads() to establish execution order because they are only effective within a CTA/cluster. We will have to use an explicit flag to achieve execution order synchronization. The code below shows one way of how this can be done.

Producer threads:
    ld.global reg, gaddr
    st.global.relaxed addr, reg
    __syncthreads()
    if thread0:
        atom.global.gpu.release.inc flag
Consumer threads:
    if thread0:
        while not flag:
            ld.global.gpu.relaxed flag
        fence.acquire.gpu
    __syncthreads()
    ld.global.relaxed reg, addr
    ...

On the producer subgrid side, the output activation is stored to GMEM with st.global.relaxed. relaxed semantic is sufficient here (for better performance) because we will guarantee release semantic with the flag. Then we __syncthreads() to ensure all producer threads have finished executing st.global.relaxed and the results are visible to other producer threads in the same CTA (recall that __syncthreads() has an implicit fence.cta). Now we elect one thread (thread 0) to signal the consumer subgrid using the flag in GMEM. Because of the __syncthreads(), all the producer threads’ GMEM writes are visible to thread 0 before the atom. We atomically increment the flag by 1 with release semantic. Thread 0 can issue a single atomic increment with gpu scope and release semantic, which makes sure all the producer threads’ GMEM writes are visible to other threads in the gpu scope.

On the consumer subgrid side, thread 0 spins on the flag in GMEM with relaxed semantic and gpu scope. We don’t want it to repeatedly aquire load the flag for better performance and will use an explicit fence to guarantee memory order. The moment it gets unblocked, thread 0 issues a fence.acquire.gpu to guarantee memory order on the consumer side. Now all the producer threads’ GMEM writes are visible to thread 0 only. Then we call __syncthreads() to establish execution order and make the data visible to the entire consumer threads (in cta scope). The implicit fence.acquire.cta in __syncthreads() makes sure all consumer threads (in cta scope) can see the producer threads’ GMEM writes. Then it’s safe to consume the output activation in GMEM with relaxed semantic.

Inspecting the SASS code, we get MEMBAR.GPU in SASS which is expected for gpu scope memory order.

Important Note: This synchronization pattern leverages the composibility property of the release-acquire pattern, meaning for the following sequence of events:

• Thread A releases in cta scope
• Thread B acquires in cta scope
• Thread B releases in gpu scope
• Thread C acquires in gpu scope

There will be a gpu scope release-acquire pattern between Thread A and Thread C. Another way to put it is, for whatever scope, if there is a release-acquire pattern between Thread A and Thread B, and a release-acquire pattern between Thread B and Thread C, then the memory model guarantees there is a release-acquire pattern between Thread A and Thread C.

Putting this in our specific example, on the consumer side, after thread 0’s gpu scope acquire fence, there is a gpu scope release-acquire pattern between all producer threads and consumer thread 0. Then __syncthreads() establishes cta scope release-acquire pattern between consumer thread 0 and all other consumer threads. The two release-acquire patterns composes to a gpu scope release-acquire pattern between all producer threads and all consumer threads. You can make the same argument for the producer side, we leave it as an exercise to the reader.

Formally, this is described as causality order in the ptx doc. Base causality order 3c describes the composition property of the release-acquire pattern.

2.2. Generic Proxy -> Async Proxy

Sometimes the CUDA core (generic proxy) will produce data that kicks off the asynchronous co-processor’s (async proxy) execution. We can’t use the nromal fence that applies in the generic proxy (e.g. fence.cta) to guarantee memory order. We have to use the fence.proxy.async to guarantee memory order between the generic proxy and the async proxy.

In other words, the normal release-acquire pattern works on establishing memory order in generic proxy -> generic proxy. After applying async proxy fences to tie the async proxy’s memory operation back to the release operation, we can establish memory order in (generic + async) proxy -> (generic + async) proxy. After the tieing, the release pattern makes prior memory operations (before release) from the current thread (in generic and async proxy) visible to other threads (in generic and async proxy).

2.2.1. CUDA Core -> TMA

During GEMM epilog, we calculate the final output using the CUDA core and we want to use TMA to store the output to GMEM. The CUDA cores (producer) first write the output from RF to SMEM, waiting for the TMA (consumer) to consume it. After the CUDA core producer writes, the SMEM data is not visible to either the generic proxy (consumer threads on CUDA core) or the async proxy (TMA unit). We have to use fence.cta to guarantee the memory visibility to the generic proxy and fence.proxy.async to guarantee the memory visibility to the async proxy.

Producer threads:
    ld.global reg, gaddr
    st.shared addr, reg
    fence.proxy.async.shared::cta
    mbarrier.arrive
Consumer threads:
    mbarrier.try_wait
    # tma store
    if thread0:
        cp.async.bulk.tensor.3d.global.shared::cta
    ...

Here the execution order is guaranteed by mbarrier. And the memory order from producer to consumer is guaranteed by the release and acquire semantics of the mbarrier arrive and try_wait. But this only works in generic proxy. fence.proxy.async.shared::cta ties the async proxy’s memory operation to the release semantic of the producer threads such that when the mbarrier.arrive is executed, both the generic and async proxy’s memory operations are visible to other threads (i.e. consumer threads in whatever proxy) in the scope. shared::cta in fence.proxy.async means the state space of the fence is SMEM. Hence when the consumer threads get unblocked by mbarrier.try_wait, it means all the producer threads have executed the st.shared and fence.proxy.async such that the SMEM data is visible to the consumer threads in the async proxy.

Note that, irrespective of the proxy the producer and consumer threads are in, you’d always need release-acquire semantics to guarantee memory order. If one of the producer or consumer threads is in async proxy, you’d need an extra fence to tie the memory order of async proxy to the release-acquire pattern.

Inspecting the SASS code, fence.proxy.async.shared::cta lowers to FENCE.VIEW.ASYNC.S in SASS.

2.2.2. CUDA Core -> tcgen05

In Flash Attention, there are two places where the CUDA core (generic proxy) needs to feed data to the tensor core (async proxy):

1. Softmax (running on CUDA core) produces P matrix and it got stored to SMEM, for tensor core (async proxy) to consume in BMM2 (i.e. V * P).
2. BMM2’s accumulator Acc2 needs to be corrected (Acc2 = Acc2 * alpha) before being accumulated with V * P. CUDA core loads the original Acc2 from TMEM, does the correction, and stores the corrected Acc2 back to TMEM, for tensor core (async proxy) to consume in BMM2.

Case 1 is identical to Sec. 2.2.1 except the async unit is tcgen05 instead of TMA. So keeping using fence.proxy.async.shared::cta would yield correct memory order.

For case 2, now the state space is TMEM which requires a different fence. tcgen05.wait::st is the equivalent of fence.proxy.async.shared::cta for TMEM. It makes TMEM from generic proxy visible to async proxy visible.

Producer threads:
    ld.global reg, gaddr
    tcgen05.st addr, reg
    tcgen05.wait::st
    mbarrier.arrive
Consumer threads:
    mbarrier.try_wait
    if thread0:
        tcgen05.mma addr, A, B, C
    ...

Same deal, mbarrier guarantees execution order and memory order, and tcgen05.wait::st ties the async proxy’s activity back to the generic proxy’s release-acquire memory order. When the consumer threads get unblocked by mbarrier.try_wait, it means all the producer threads have executed the tcgen05.st and tcgen05.wait::st such that the TMEM data is visible to the consumer threads in the async proxy.

Inspecting the SASS code, tcgen05.wait::st lowers to FENCE.VIEW.ASYNC.T in SASS.

2.3. Async Proxy -> Generic Proxy

Other times the async proxy (e.g. TMA/Tensor Core) will produce data that kicks off the CUDA core’s (generic proxy) execution. Naturally we would need a fence to make the async proxy’s data visible to the generic proxy. Luckily, this fence is mostly implicitly built into various hardware instructions. We will cover the most common ones here.

2.3.1. TMA -> CUDA Core

Often times we use TMA (async proxy) to copy data from GMEM to SMEM, and then the CUDA core (generic proxy) will consume it from SMEM for further processing.

Producer threads:
    if thread0:
        cp.async.bulk.tensor.3d.shared::cta.global addr
Consumer threads:
    mbarrier.try_wait
    ld.shared reg, addr
    ...

TMA’s completion implicitly does two things:

1. It arrives on the mbarrier with release semantic.
2. It issues a async proxy fence to tie the async proxy’s SMEM data write to the release pattern.

Then on the consumer side, when the consumer threads get unblocked by mbarrier.try_wait, it means the TMA has completed and the SMEM data is visible to the generic proxy.

2.3.2. tcgen05 -> CUDA Core

tcgen05 tensor core (async proxy) produces data for the CUDA core (generic proxy) to execute the epilog on. The only difference is the storage idiom for the data communication is TMEM instead of SMEM.

Producer threads:
    if thread0:
        tcgen05.mma addr, A, B, C
        tcgen05.commit
Consumer threads:
    mbarrier.try_wait
    tcgen05.ld reg, addr
    add reg, reg, 1
    ...

It’s more or less the same as Sec. 2.3.1 except the MMA completion is being explicitly tracked by tcgen05.commit. And similarly it does two things:

1. It arrives on the mbarrier with release semantic.
2. It issues a async proxy fence to tie the async proxy’s TMEM data write to the release pattern.

Then on the consumer side, when the consumer threads get unblocked by mbarrier.try_wait, it means the tcgen05 has completed and the TMEM data is visible to the generic proxy.

Inspecting the SASS code, tcgen05.commit lowers to UTCBAR in SASS.

When do I need tcgen05.wait::ld?

In the above example, for the tcgen05.ld (producer) to RF (register file) to add (consumer) relationship, we don’t need tcgen05.wait::ld because it’s the same thread and dependency/memory order is tracked by register dependency. However, for the following sequence of events you would need tcgen05.wait::ld:

tcgen05.ld reg, addr
tcgen05.wait::ld
tcgen05.st addr, reg

In this case,mwe are loading data from TMEM and a later tcgen05.st will overwrite the same TMEM address. We want to protect the write after read dependency. So tcgen05.wait::ld is inserted after the tcgen05.ld to guarantee the load is done and it’s safe to overwrite TMEM. This is because there isn’t HW TMEM dependency tracking (same is true for SMEM) so we have to manually enforce the memory order.

2.4. Async Proxy -> Async Proxy

The last category is the async proxy -> async proxy pattern where one async hardware unit (TMA) produces data that kicks off the execution of another async hardware unit (Tensor Core). We still need an SM in the middle to track the completion of TMA and kicks off tcgen05.

2.4.1. TMA -> tcgen05

Why we need this pattern is beyond obvious. It’s almost identical to Sec. 2.3.1 except the consumer is tcgen05 instead of CUDA core. The completion of TMA arrives on the mbarrier with release semantic and issues a async proxy fence to tie the async proxy’s memory operation back to the release pattern. Such that when the consumer threads get unblocked by mbarrier.try_wait, it means the TMA has completed and the SMEM data is visible to the consumer threads in the generic and async proxy.

Producer threads:
    if thread0:
        cp.async.bulk.tensor.3d.shared::cta.global addr
Consumer threads:
    mbarrier.try_wait
    if thread0:
        tcgen05.mma addr, A, B, C
    ...

3. Summary

I did not mean for this blog to be this long. But using the weakest fence possible is vital for performance in particular in the cluster scope. Despite the length, I hope at least I give enough examples to help you understand the GPU memory model and how to use it in practice. If there are patterns I haven’t covered, CUTLASS is another great reference.

In this blog:

• We covered the basic ingredients of the memory model: state space, scope, proxy, and memory ordering semantics.
• We differentiated execution order from memory order and compared several ways to establish execution order and memory order in ptx.
• We talked about how to do memory between CUDA core threads (generic proxy) in cta, cluster, and gpu scope.
• We then explained how to enforce memory order between the asynchronous hardware units (TMA, Tensor Core) and the CUDA core threads (generic proxy).

I still wish I would never think about the memory model.
